H100C input batch feeder for overseas transport in containers
Container packing sizes – easy assembly – segmental construction method – 12 m³ to 86 m³

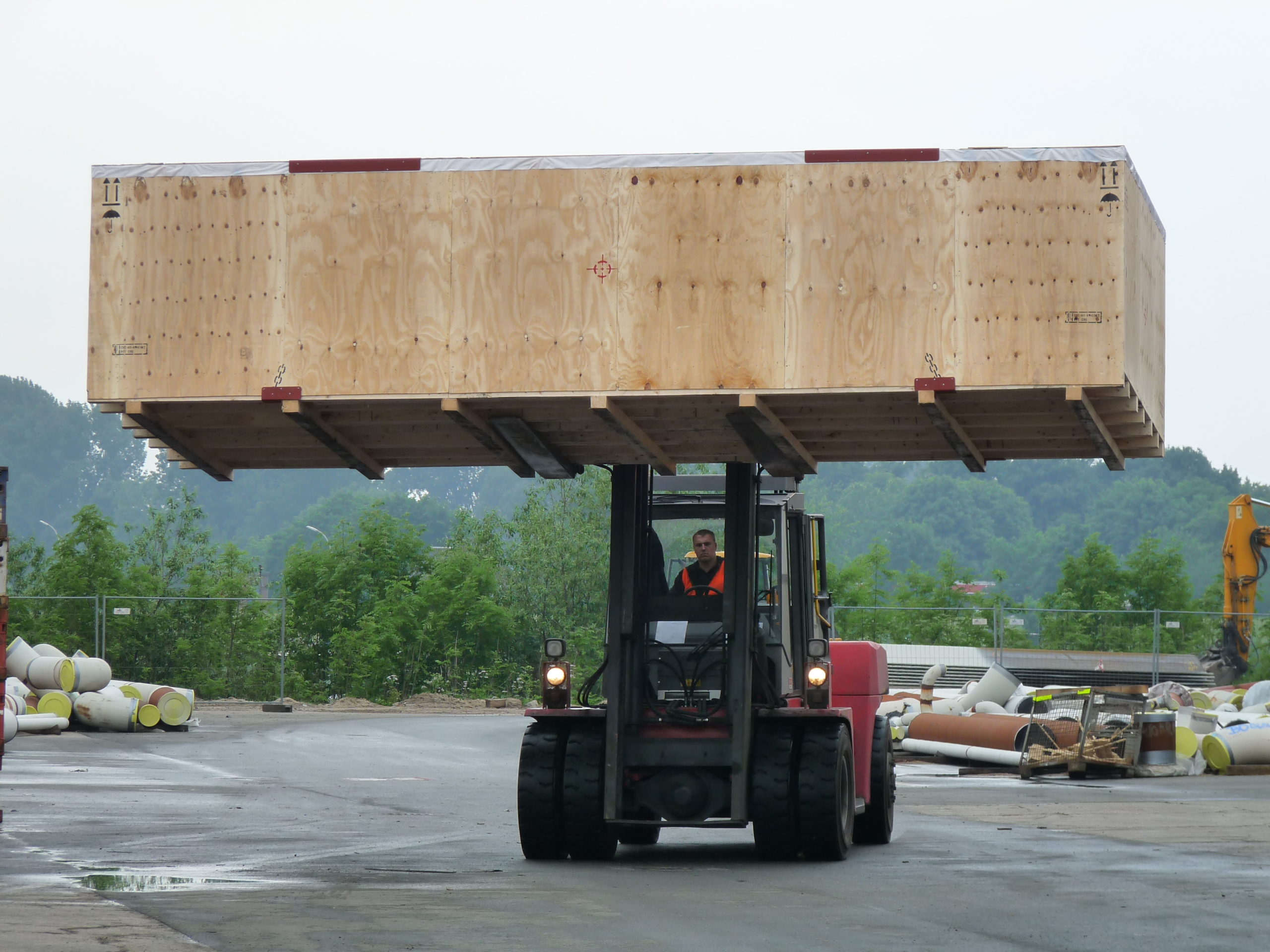

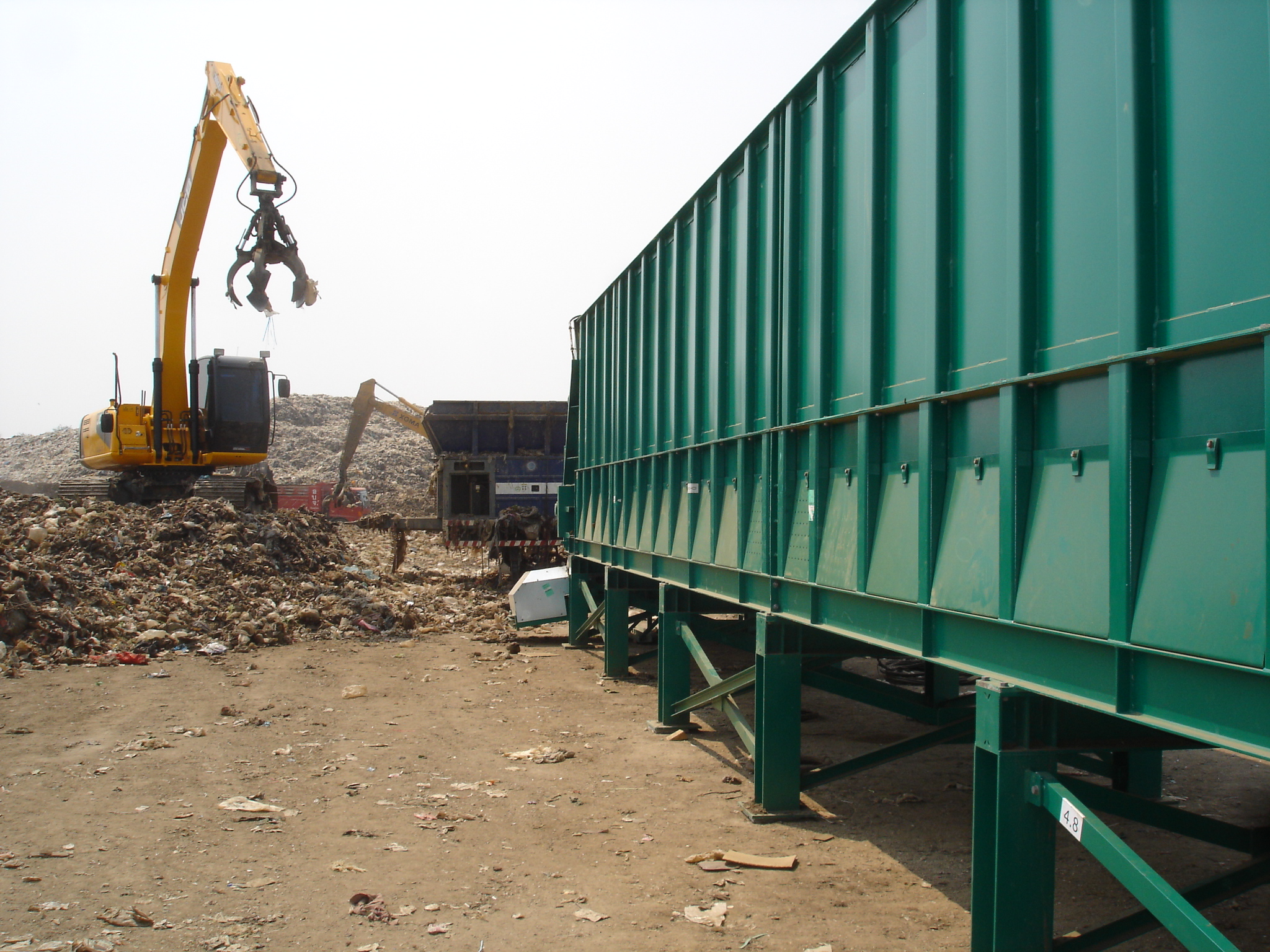

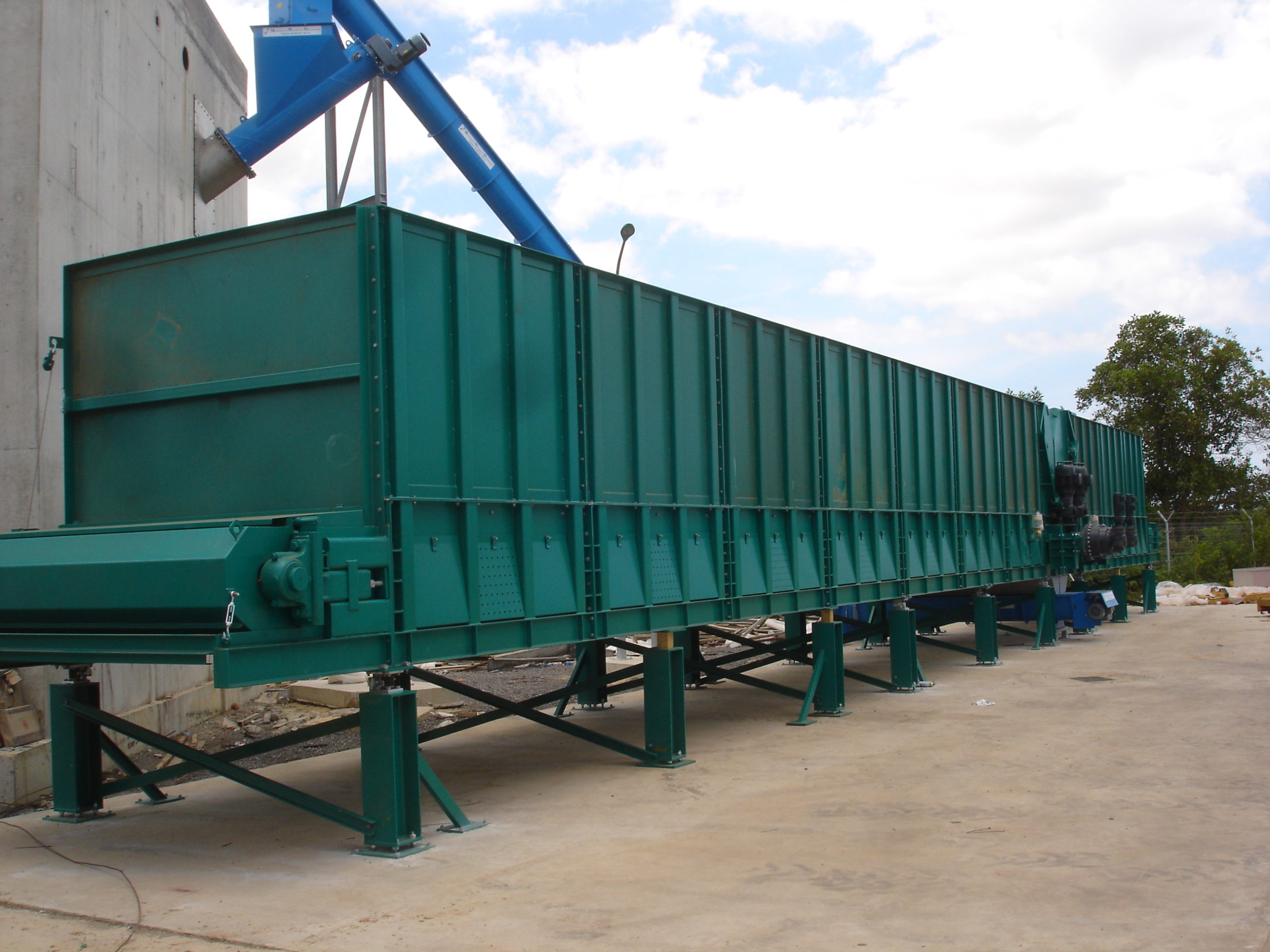

The H100C input batch feeder is a scraper-chain conveyor with integrated milling unit, specially designed for ocean freight transport in standard containers. The silo is designed as a module and equipped with illustrated assembly instructions for self-assembly. This saves on transport and assembly costs.
Main assemblies
- Silo vessel up to 86 m³
- Milling head with milling drums
- Scraper-chain connected via tappets
- Substructure for horizontal installation.

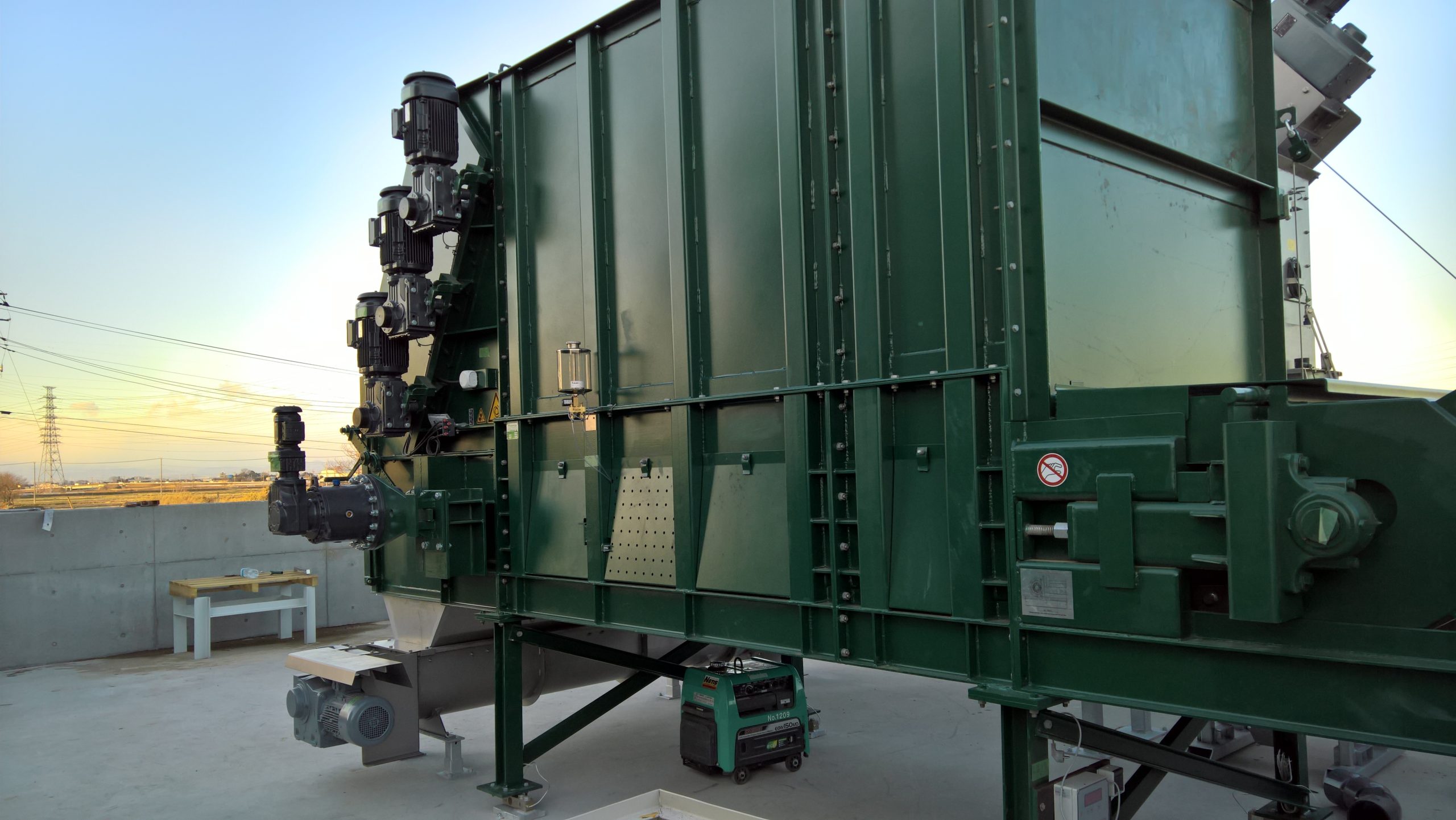

The scraper-chain is driven by plug-in gear motors, controllable via a frequency converter.
Dimensionierung in Abhängigkeit
- Of the collection volume
- Of the specific weight of the transported material
- Of the conveying speed (volume throughput)

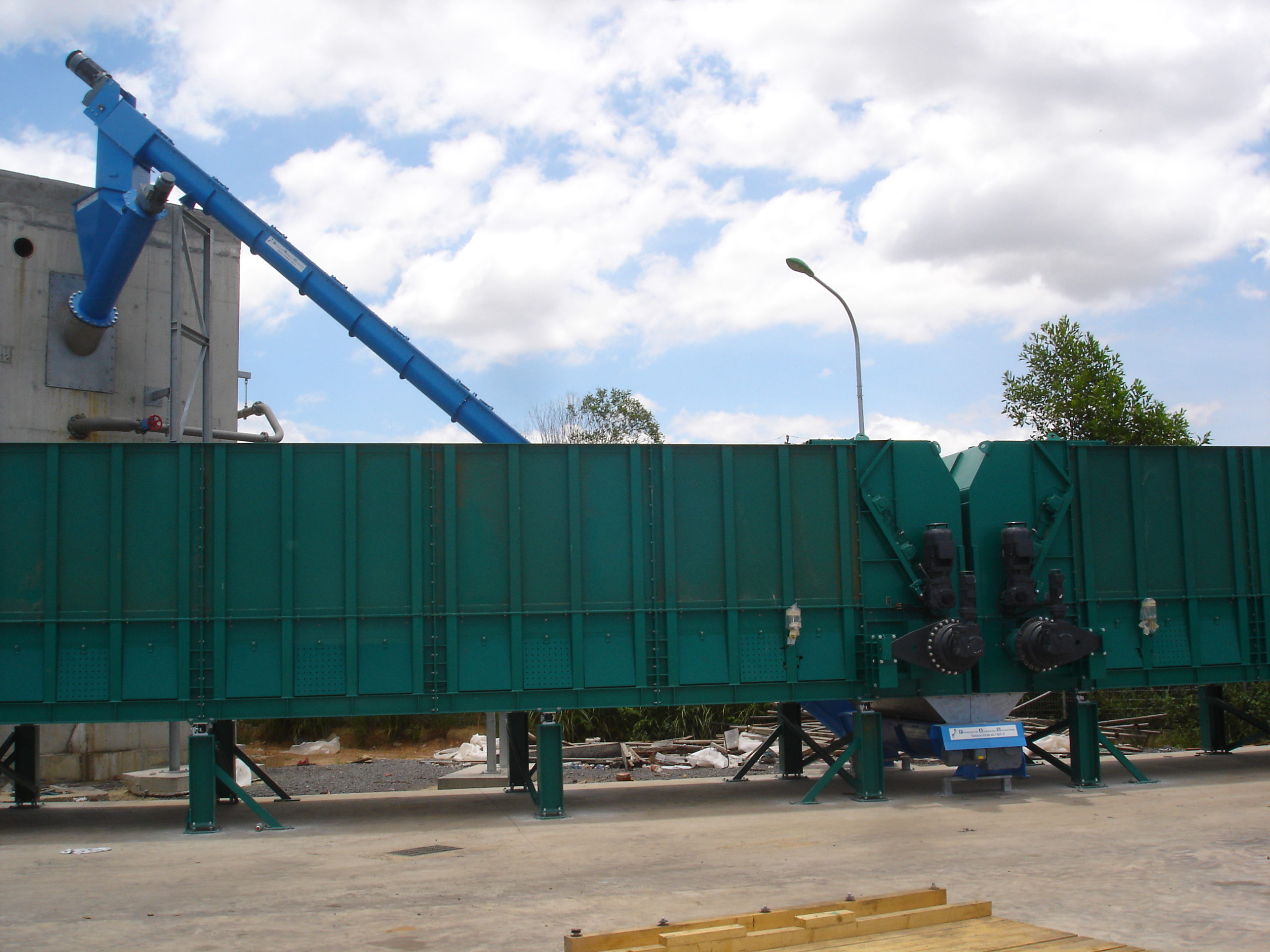

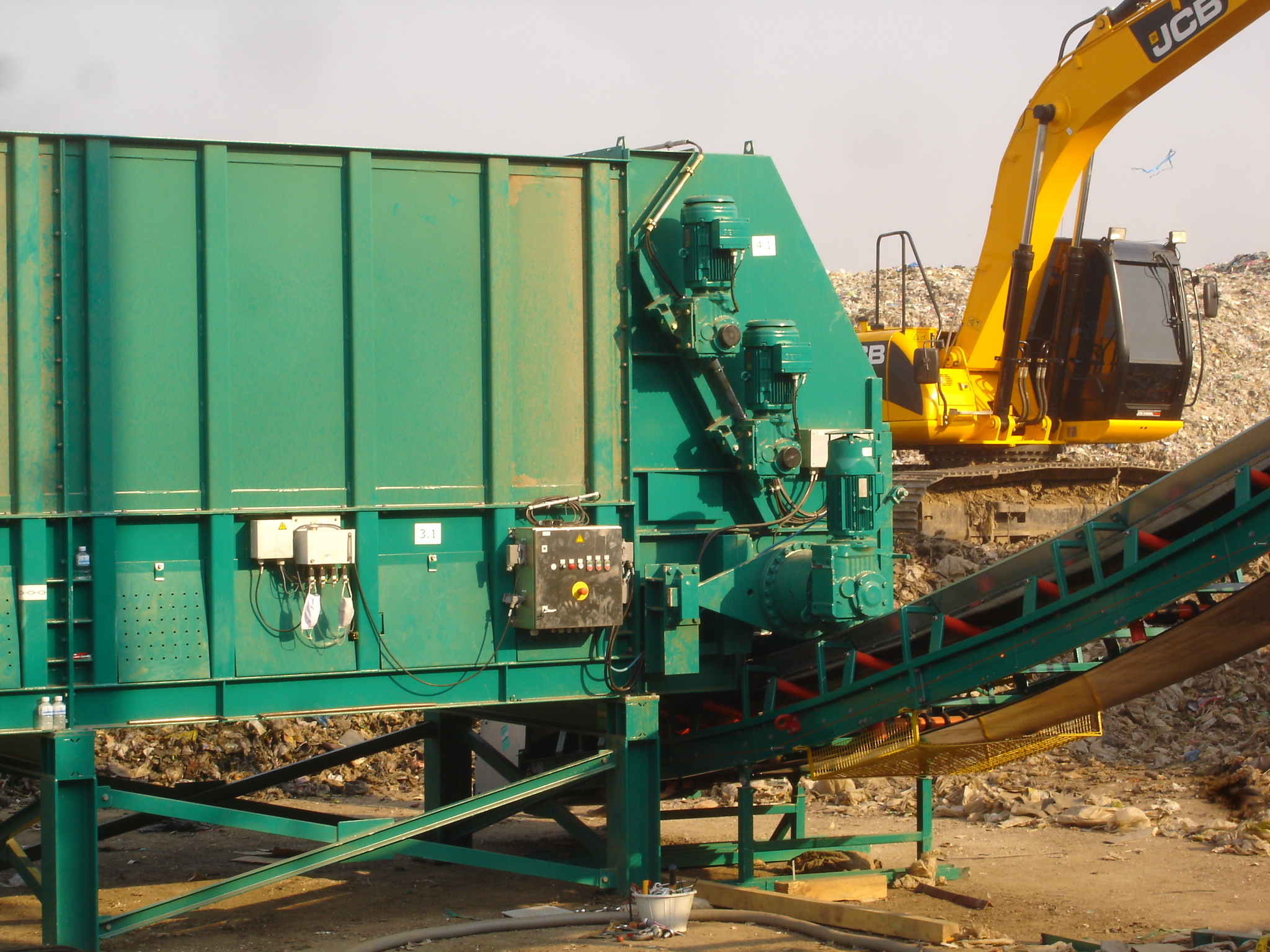

The milling head
At the discharge point of the batch feeder is the milling head, which evenly mills the pourable and granulate material introduced into it using milling drums arranged obliquely to each other and passes it on to a downstream transport unit.
Different milling drum variants are used according to the specific properties of the transported material.
These guarantee:
- Good dispersion of the transported material
- A constant and even flow of material
- Resistance to interference by foreign matter
- Low tendency towards lap formation
Loading of the input batch feeder:
- Through vehicle tipping (side or rear discharge)
- Via wheel loaders
- As specific output from belt, trough or screw conveyors with equalisation unit
- Through crane loading
Silo volume | Up to 86 | m³ |
Silo length | Up to 16000 | mm |
Silo width | 2000/2600 | mm |
Max. fill height | 2000 | mm |
Possible throughput | Up to 150 | m³/h |
Opening drums | 3 | Units |
Chain type | Roller chain |
- Container cover
- Weighing
- Electrical control system
- Further conveyor technology such as conveyor belts, screws, scraper-chain conveyors
- Equalisation attachment (bed level equaliser)
